This section lists the indicators that may be displayed during shooting.

For illustrative purposes, displays are shown with all indicators lit.

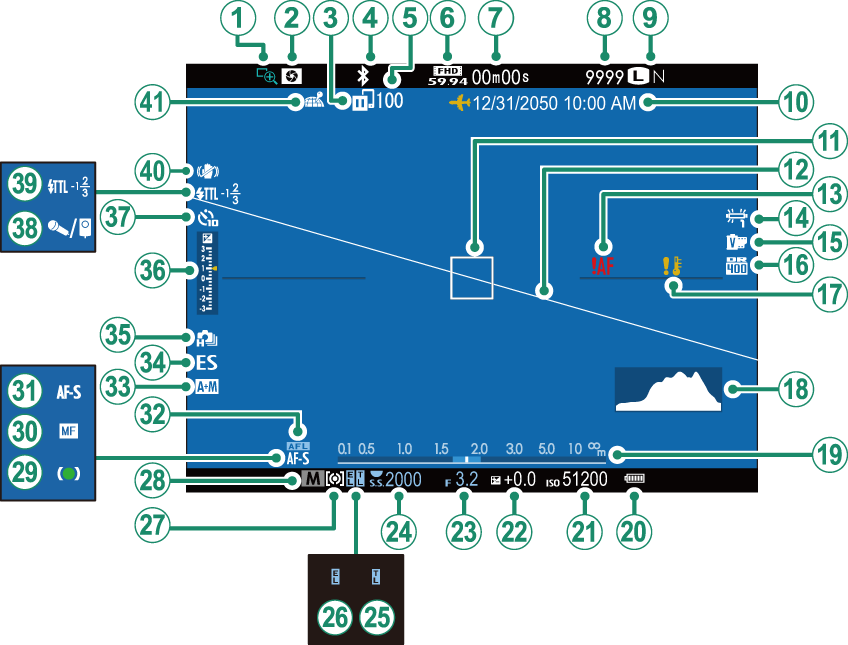

Electronic Viewfinder/LCD Monitor

Focus check

Depth-of-field preview

Image transfer status

Bluetooth ON/OFF

Number of frames selected for upload

Movie mode

Time remaining

Number of available frames *

Image quality and size

Date and time

Focus frame

Virtual horizon

Focus warning

White balance

Film simulation

Dynamic range

Temperature warning

Histogram

Distance indicator

Battery level

Sensitivity

Exposure compensation

Aperture

Shutter speed

TTL lock

AE lock

Metering

Shooting mode

Focus indicator

Manual focus indicator

Focus mode

AF lock

AF+MF indicator

Shutter type

Continuous mode

Exposure indicator

Self-timer indicatorr

Microphone/remote release

Flash (TTL) mode
Flash compensation

IS mode

Location data download status

* Shows “9999” if there is space for over 9999 frames.

Choosing a Display Mode

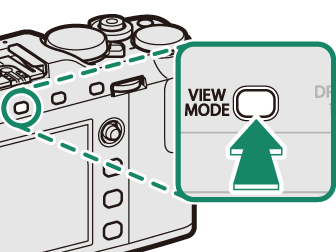

Press the VIEW MODE button to cycle through the following display modes:

  •  EYE SENSOR: Putting your eye to the viewfinder turns the viewfinder on and the LCD monitor off; taking your eye away turns the viewfinder off and LCD monitor on.
  • EVF ONLY: Viewfinder on, LCD monitor off.
  • LCD ONLY: LCD monitor on, viewfinder off.
  • EVF ONLY + : Putting your eye to the viewfinder turns the viewfinder on; taking it away turns the viewfinder off. The LCD monitor remains off.
  •  EYE SENSOR + LCD IMAGE DISP.: Putting your eye to the viewfinder during shooting turns the viewfinder on, but the LCD monitor is used for the display of images immediately after shooting.

The Eye Sensor

The eye sensor may respond to objects other than your eye or to light shining directly on the sensor.

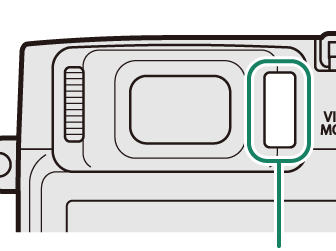

Eye sensor

Adjusting Display Brightness and Color

The brightness and hue of the viewfinder and LCD monitor can be adjusted using the items in the SCREEN SET-UP menu. Choose EVF BRIGHTNESS or EVF COLOR to adjust viewfinder brightness or hue, LCD BRIGHTNESS or LCD COLOR to do the same for the LCD monitor.

Display Rotation

When ON is selected for SCREEN SET-UP > AUTOROTATE DISPLAYS, the indicators in the viewfinder and LCD monitor automatically rotate to match camera orientation.

The DISP/BACK Button

The DISP/BACK button controls the display of indicators in the viewfinder and LCD monitor.

Indicators for the EVF and LCD must be selected separately. To choose the EVF display, place your eye to the viewfinder while using the DISP/BACK button.

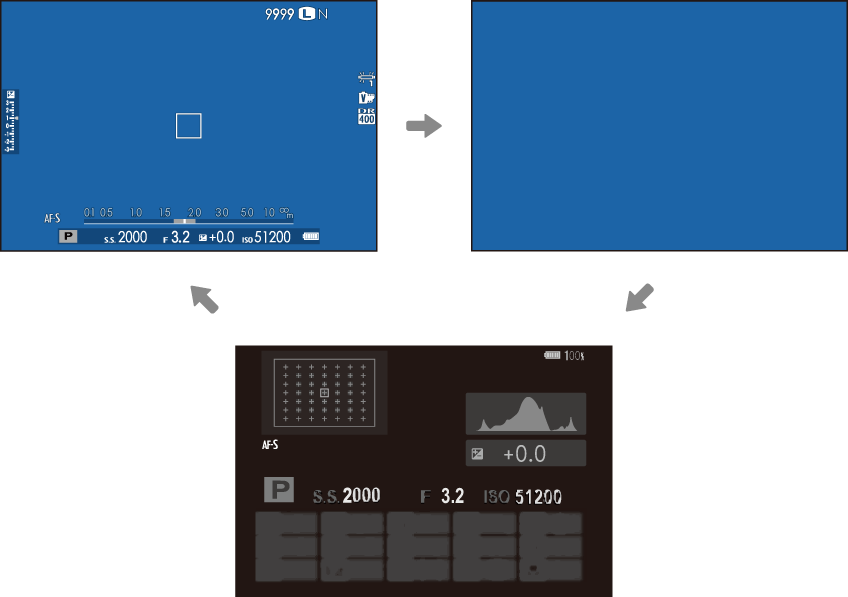

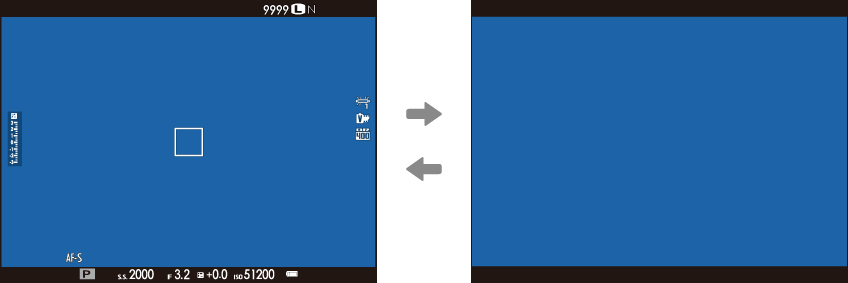

Viewfinder

Standard   Information off

LCD Monitor

Standard   Information off

Info display

Customizing the Standard Display

To choose the items shown in the standard display:

  1. Display standard indicators.

    Use the DISP/BACK button to display standard indicators.

  2. Select DISP. CUSTOM SETTING.

    Select SCREEN SET-UP > DISP. CUSTOM SETTING in the setup menu.

  3. Choose items.

    Highlight items and press MENU/OK to select or deselect.

    • FRAMING GUIDELINE
    • ELECTRONIC LEVEL
    • FOCUS FRAME
    • AF DISTANCE INDICATOR
    • MF DISTANCE INDICATOR
    • HISTOGRAM
    • LIVE VIEW HIGHLIGHT ALERT
    • SHOOTING MODE
    • APERTURE/S-SPEED/ISO
    • INFORMATION BACKGROUND
    • Expo. Comp. (Digit)
    • Expo. Comp. (Scale)
    • FOCUS MODE
    • PHOTOMETRY
    • SHUTTER TYPE
    • FLASH
    • CONTINUOUS MODE
    • DUAL IS MODE
    • TOUCH SCREEN MODE
    • WHITE BALANCE
    • FILM SIMULATION
    • DYNAMIC RANGE
    • FRAMES REMAINING
    • IMAGE SIZE/QUALITY
    • MOVIE MODE & REC. TIME
    • IMAGE TRANSFER ORDER
    • BATTERY LEVEL
    • FRAMING OUTLINE
  4. Save changes.

    Press DISP/BACK to save changes.

  5. Exit the menus.

    Press DISP/BACK as needed to exit the menus and return to the shooting display.

Some indicators are not displayed in all modes.

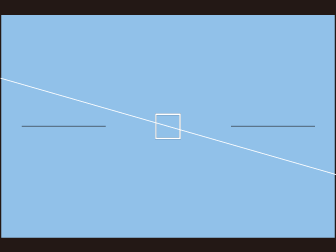

Virtual Horizon

Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down.

Framing Outline

Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds.

Histograms

Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.

Number of pixels


Shadows Pixel brightness Highlights

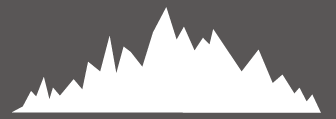

Optimal exposure: Pixels are distributed in an even curve throughout the tone range.

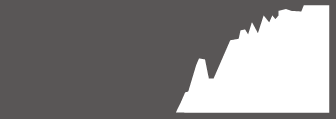

Overexposed: Pixels are clustered on the right side of the graph.

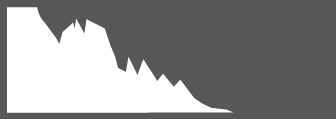

Underexposed: Pixels are clustered on the left side of the graph.

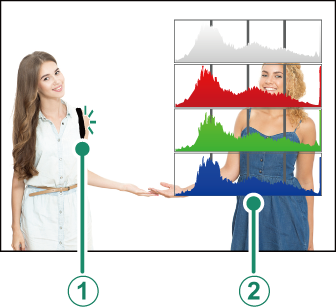

To view separate RGB histograms and a display showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the function button to which HISTOGRAM is assigned.

Overexposed areas blink

RGB histograms
