Adjust settings for audio recorded during filming.

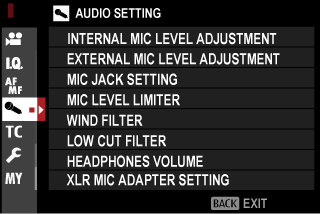

To display focus settings, press [MENU/OK] in the shooting display and select the P([AUDIO SETTING]) tab.

The options available vary with the shooting mode selected.

[INTERNAL MIC LEVEL ADJUSTMENT]

Adjust the recording level for the built-in microphone.

Option Description
[AUTO] The camera adjusts the recording level automatically.
[MANUAL] Adjust the recording level manually. Press the selector right to choose from 25 recording levels.
[OFF] Turn the built-in microphone off.

[EXTERNAL MIC LEVEL ADJUSTMENT]

Adjust the recording level for external microphones.

Option Description
[AUTO] The camera adjusts the recording level automatically.
[MANUAL] Adjust the recording level manually. Press the selector right to choose from 25 recording levels.
[OFF] Disable recording using external microphones.

[MIC JACK SETTING]

Specify the type of hardware connected to the microphone jack.

Option Description
[MIC] Choose this option for direct connection to an external microphone.
[LINE] Choose this option for external audio devices connected via line output.

[MIC LEVEL LIMITER]

Reduces distortion caused by input that exceeds the limits of the microphone's audio circuits.

Options
[ON] [OFF]

[WIND FILTER]

Choose whether to enable wind noise reduction during movie recording.

Options
[ON] [OFF]

[LOW CUT FILTER]

Choose whether to enable the low-cut filter, reducing low-frequency noise during movie recording.

Options
[ON] [OFF]

[HEADPHONES VOLUME]

Adjust the headphone volume.

Option Description
[0] Mute output to the headphones.
[1]—[10] Choose a volume of from 1 to 10.

[XLR MIC ADAPTER SETTING]

Adjust microphone input channel settings and the like for use with XLR microphone adapters.

[MIC INPUT CHANNEL]

Record four-channel (quadraphonic) sound with the help of the camera’s built-in microphone, or two-channel (stereo) sound using only a microphone connected via the XLR microphone adapter.

Option Description
[4ch XLR+CAMERA] Record four-channel sound with the help of the camera’s built-in microphone.
[2ch XLR ONLY] Record two-channel sound using only an external microphone connected via the XLR microphone adapter.

[4ch AUDIO MONITORING]

Choose the source of sound output to headphones or other audio monitors during movie recording.

Option Description
[XLR] Monitor sound from external microphones connected via the XLR microphone adapter.
[CAMERA] Monitor sound from camera’s built-in microphone.

[HDMI 4ch AUDIO OUTPUT]

Choose source of audio output to the HDMI connector.

Option Description
[XLR] Audio from external microphones connected via the XLR microphone adapter is output to the HDMI connector.
[CAMERA] Audio from camera’s built-in microphone is output to the HDMI connector.

If an external microphone is connected to the camera’s microphone jack, audio will be recorded not via the camera’s built-in microphone but via the external microphone instead.

Four-channel recording is available only when [MOV/H.265 (HEVC) LPCM] or [MOV/H.264 LPCM] is selected for B[MOVIE SETTING] > [FILE FORMAT].
